Worm Gearboxes with DC Motors
Output Speeds from 30 to 600 rpm. Output torque up to 100 Nm. 5 sizes in Cobalt Controls Worm Gearbox Range: CCW063, CCW050, CCW040, CCW030 and CCW026. Wide range of Gearbox ratios available from 5:1 up to 100:1. High Load capability on Output Shaft. All metal gears for Durability and Long Service Life. Ball Bearings on output shaft. Hollow or Solid Output Shafts available. 24 Volt DC Permanent Magnet motors standard, 12 Volt available. Rotary Encoders available on most motors. Sizes larger than CCW063 available - call Cobalt Controls sales office. Click on buttons to the left for Full Information.

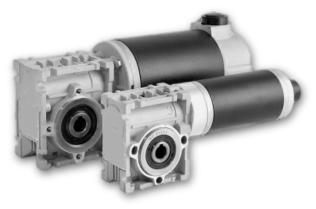

Worm Geared Motors available from Cobalt Controls Ltd can be used in any mounting position and are available in the following five sizes: CCW063, CCW050, CCW040, CCW030 and CCW026. Maximum available output torque is 100 Nm at 30 rpm, using the 063 size Gearbox, the largest in the range. Gearbox housings are manufactured from die cast aluminium alloy for light weight and are designed for maximum flexibility with up to twenty possible positions for mounting bolts. To give high load capability and long service life, only metal gears are used with the output shaft supported on Ball Bearings. Hollow Output Shafts are standard and single or double sided solid shafts are also available. All Gearboxes are pre-filled with synthetic oil and are maintenance free for life. Motors are 12 or 24 Volt DC Permanent Magnet offering high Starting Torque. Rotary encoders are available on most motors - see data sheets for details. Worm Gearboxes are mechanically robust and normally the most economically priced of all gearbox types.
click to download CCW026  data click to download CCW030 data click to download Encoder data
